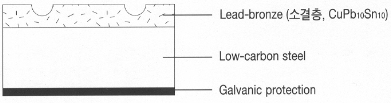

• KDB BM identifies a complete range of bimetallic bearings made by lining a low carbon steel support with a sintered
  bronze layor.
  These sliding bearings must be used with oil or grease lub-rication. The sliding surface of these bearing may be mech-anically machined to obtain channel grooves or pockets for a better distribution of the lubricant. Steel backed leadbronze
  lined bearing material for lubricated application, high load capacity and good fatigue properties.

• KDB BM

Material	Alloy compositon	International standard	Alloy hardness
BM-1	CuPb10Sn10	JIS-LBC3/SAE-797	HB70-100
BM-2	CuPb24Sn4	JIS-LBC6/SAE-799	HB45-70
BM-3	CuPb24Sn	JIS-KJ3/SAE-48	HB30-45
BM-4	AlSn20Cu	JIS-AJL/SAE-783	HB30-40

• Gear shaft bushing (hydraulic geared pump)
• Shovel bucket hinge bushing (tractor, shovel), Lower ring bushing (bulldozer)
• Cam shaft, Connecting rod, Rocker arm, Idle gear, King pin bushing
• Leaf spring, Brake shoe, Hoist cylinder, Hydraulic motors bushing
• Mechanical handling, Lifting equipment, agricultural machines bushing

• Performance being good during high speed
• Fitness during high load
• High-strength special quality
• Low attrition performance
• Bearing for lubrication of oil lubrication method
